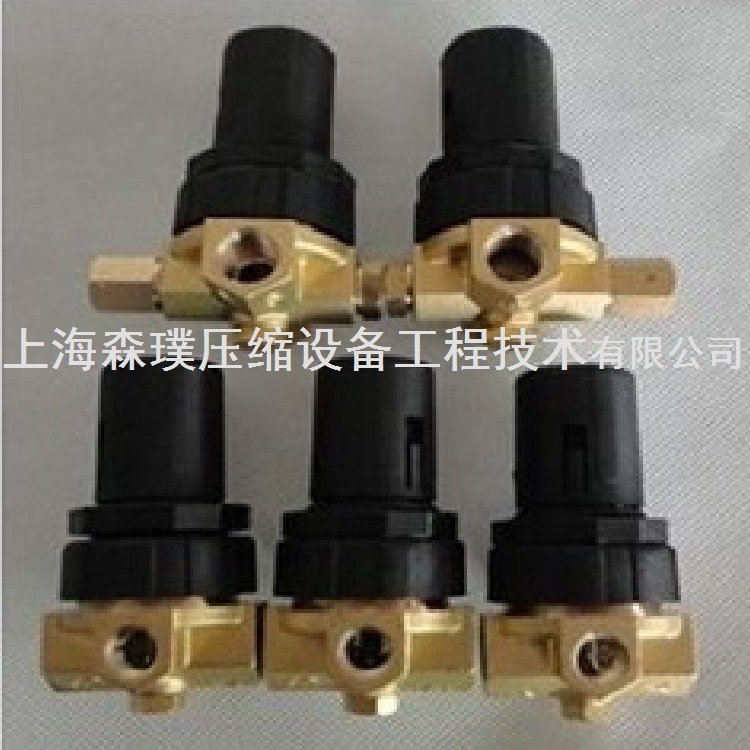

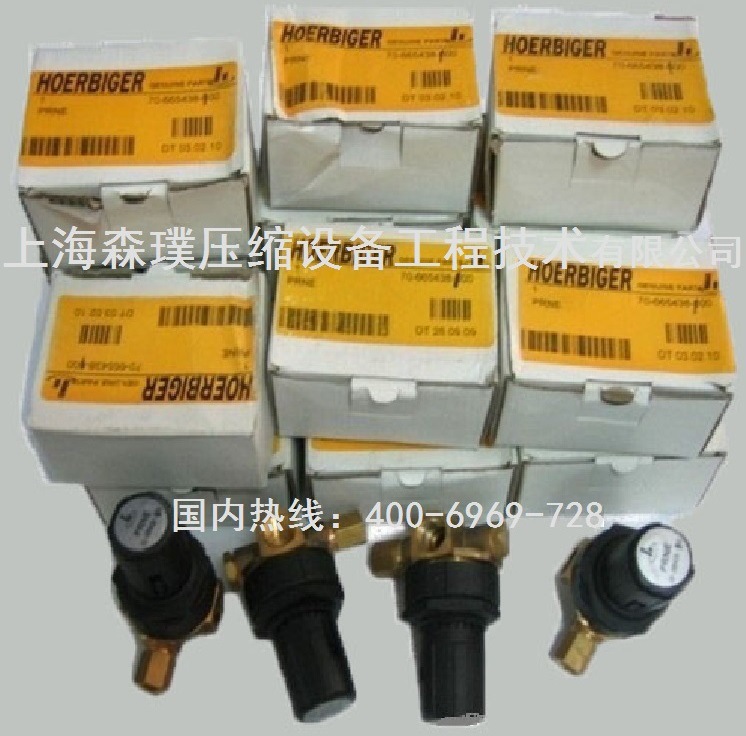

HOERBIGER賀爾碧格反比例閥：PRNE 70-665438 080/100
反比例閥適應各品牌空壓機：復盛.艾能.正力精工.浪潮.紅五環.佳力士.......
反比例閥配合蝶式進氣控制閥使用，當系統壓力因用氣量減少而升高時，達到反比例閥設定壓力時，反比例閥動作并減少控制空氣輸出量，空壓機進氣閥伺服氣缸閥桿推力減少，在彈簧力的作用下，閥桿回縮，當彈簧力與氣缸的氣體推力平衡時，閥桿處于半開狀態，滑片式壓縮機進氣量減少至與系統用氣量相平衡。
反比例閥的調整比較簡單，但要實現伺服汽缸的靈敏動作則需要多次調整，反比例閥的調整目的是空氣壓力達到距壓力開關動作的上下限均有0.02MPa時反比例閥動作，以減少或增加滑片式壓縮機進氣量使進氣閥相應關小或開大，提前調節空壓機容量，以減少空重負荷次數。反比例閥順時針方向調整有增加伺服氣缸進氣量的效果，反之，則減少進氣量。

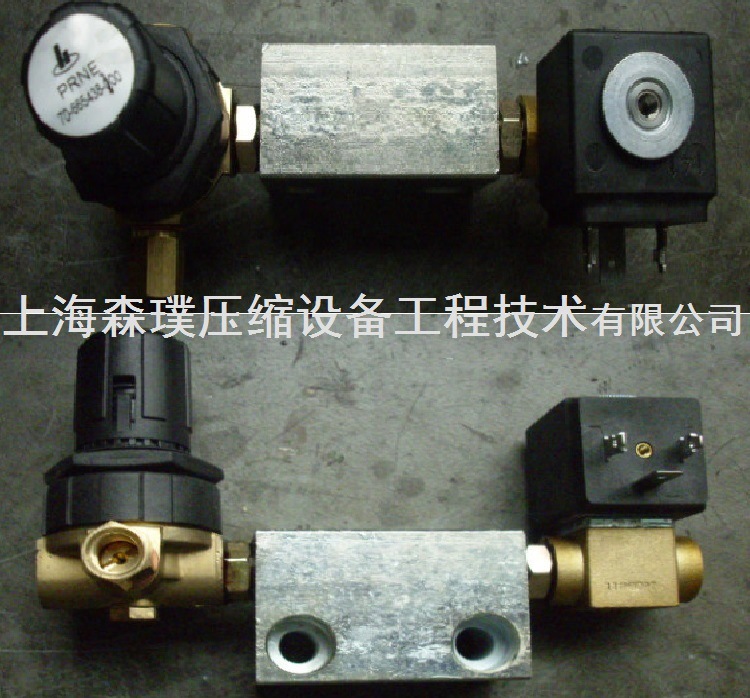

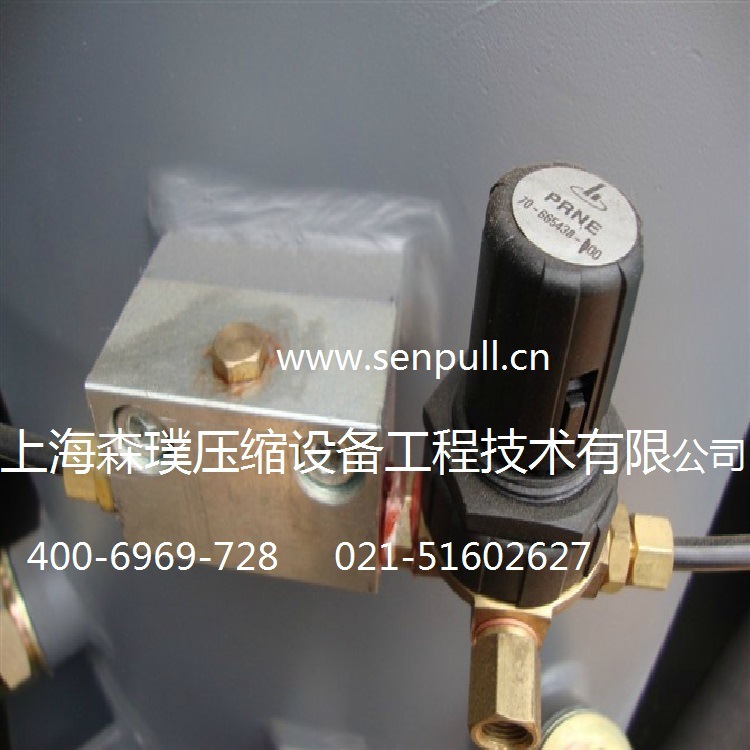

反比例閥裝在進氣閥伺服氣缸前面。當系統壓力達到反比例閥的動作壓力時。調節伺服汽缸動作，伺服氣缸調節進氣蝶閥開啟角度，從而調節了進氣量、排氣量。
反比例閥連接螺紋:G1/4,排氣口通徑有0.8MM和1.0MM二種,反比例閥在壓縮機系統中控制進氣閥的進氣量，減低電機運轉負荷達到節能效果。
歡迎各界同仁來人來電咨詢、洽談!詳細資料至公司索取。我們將以一流的產品，超低的價格，優質的服務與您密切合作，共謀發展！
企業官網：www.senpull.cn國內熱線：400-6969-728 技術咨詢：021-51602627 51602681
【進口壓縮機國際亞洲配送中心】【中國空壓機備品備件營銷中心】
反比例閥適應各品牌空壓機：復盛.艾能.正力精工.浪潮.紅五環.佳力士.......
HOERBIGER賀爾碧格反比例閥：PRNE 70-665438 080/100 HOERBIGER賀爾碧格伺服氣缸：ZAED40、ZBED40賀爾碧格伺服氣缸膜片：88-559767、88-665957、90-560525賀爾碧格、HOERBIGER賀爾碧格放空閥：VVL10 NO(90-665240)、VVF15 NO(90-665380)；停機放空閥：HEV08EG(70-665729)；VMC溫控閥：溫控閥TV1-55 90-665574、溫控閥TV1/2-55、溫控閥TV3/4-55、溫控閥TV11/4-55、溫控閥TV11/2-55 90-665586、溫控閥TV1/2-70、溫控閥TV3/4-70、溫控閥TV1-70、溫控閥TV11/2-70、溫控閥TVFT25/70-1/2、溫控閥TVFT25/70-3/4、溫控閥TVFT35/70-1，
TV1-55 90-665574、TV1/2-55、TV3/4-55 、TV11/4-55、TV11/2-55、 90-665586、TV1/2-70、TV3/4-70、TV1-70、TV11/2-70、TVFT25/70-1/2、TVFT25/70-3/4、 TVFT35/70-1、VTFT25/71-1/2、VTFT35/71-3/4、VTFT35/71-1、VTFT27、VTS55/71-11/2、 VTFT35、VT25/55-1/2、VT2FT45 、VT35/55-1、VTFT55、 VTS45/55-11/4,VT25/71-1/2,VT25/71-3/4,VT35/71-1,VTS45/71-11/4、 VT-55C 2205462900
Inverse proportion with inlet butterfly valve is used, sliding-vane compressor when the system pressure rises, due to gas reduced to inverse proportion pressure valve set, inverse proportion valve action and reduce control air volume, air compressor air intake valve servo cylinder valve stem thrust reduced, in under the action of spring force, the valve stem retraction, when the spring force and the gas cylinder thrust balance, the valve stem is in a state of half open, sliding-vane compressor into the air to gas phase equilibrium and system.
Inverse proportion valve adjustment is more simple, but in order to realize the servo cylinder sensitive action you need to adjust many times, the inverse proportion valve's purpose is to adjust air pressure moves away from the pressure switch on the floor are 0.02 MPa when the inverse proportion valve action, in order to reduce or increase the sliding-vane compressor into the air to make the air intake valve up or down accordingly, adjust the air compressor capacity in advance, in order to decrease the number of empty heavy load for sliding vane compressor. Inverse proportion valve clockwise to adjust have increased servo cylinder air inflow effect, on the other hand, is to reduce the volume.
Inverse proportion valve is installed in front of the intake valve servo cylinder.
When the system pressure to inverse proportion valve action. Adjusting the servo cylinder, servo cylinder adjusting inlet butterfly valve opening Angle, so as to adjust the volume, displacement.
Inverse proportion valve connection thread: G1/4, vent size is 0.8 MM and 1.0 MM, two kinds of inverse proportion valve in the compressor system control into the air intake valve, reducing motor load achieve energy saving effect.
