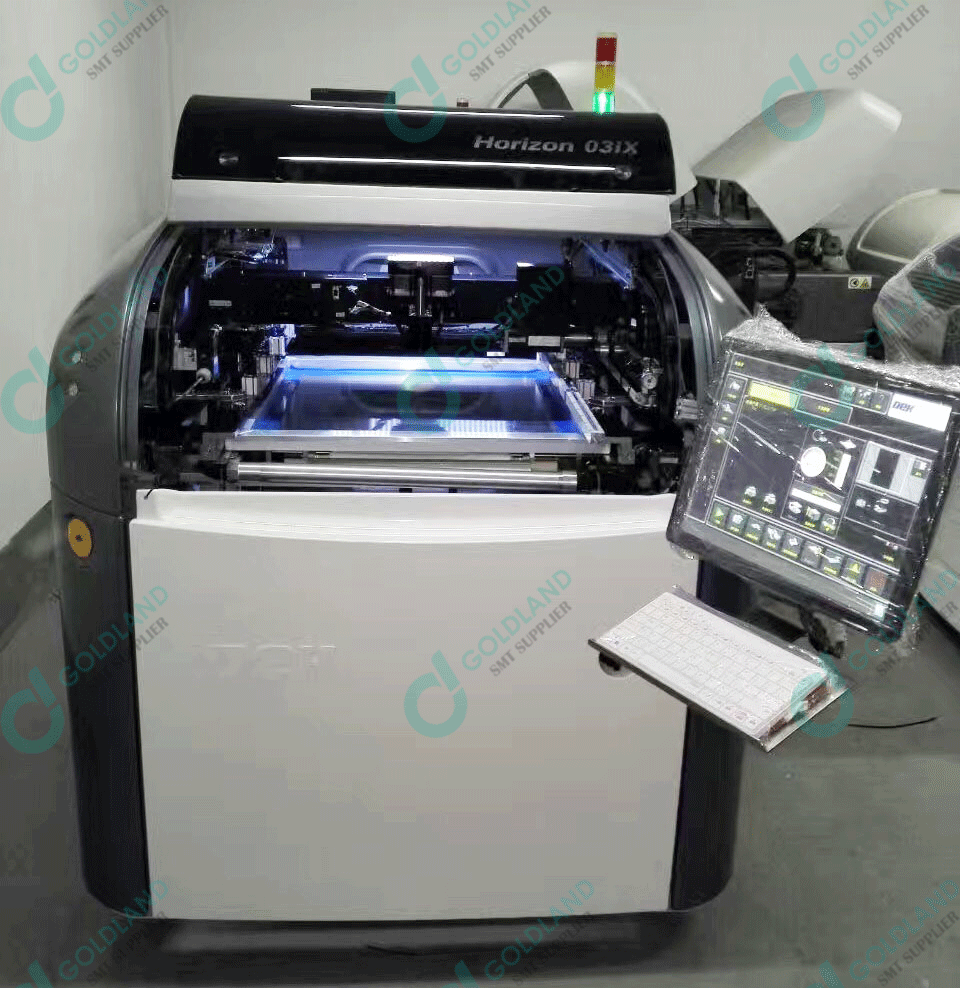

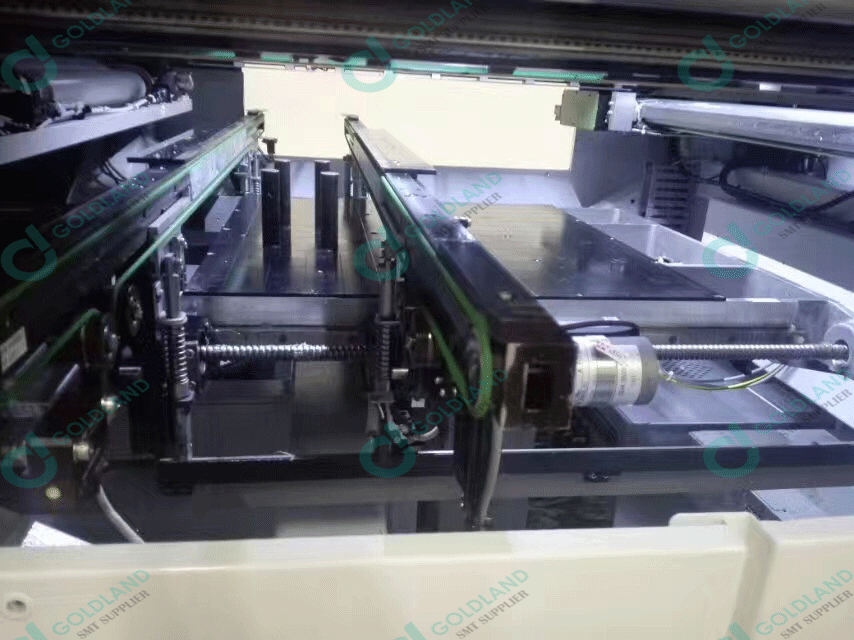

DEK Horizon 03iX Screen Printer
DEK Horizon 03iX Machine Standard Configuration:
Standard Configuration
Specification
Machine Alignment Capability
>2.0 Cpk @ +/- 12.5μm, (±6 Sigma) #
Process Alignment Capability
>2.0 Cpk @ +/- 25μm, (±6 Sigma) #
Core Cycle Time
10 secs (9 secs with HTC option)
Maximum Print Area
510mm* (X) x 508.5mm (Y)
Printer Construction
One piece optimised welded frame
ISCANTM Machine Control
Motion control using CAN BUS network
Operating System
Windows 7 Standard embedded
Operator Interface
Colour TFT touch screen display, keyboard and trackball with DEK InstinctivTM software. Machine mountable on either left or right hand side.
Camera
HawkEye® 750 digital camera, using IEEE 1394 interface. Multi channel. LED lighting.FOV 11.3mm x 8.7mm. Inspection window 26mm2
Camera Positioning
Rotary motors and encoders with 4 micron resolution
Squeegee Pressure Mechanism
Software controlled, motorised
Stencil Positioning
Manual width screen depth adjuster
Stencil Alignment
Motorised via actuators X, Y, and Theta
Squeegee
Clamped double trailing edge squeegee (1 set included)
Machine Interface
Upline and downline FMI included
Connectivity
RJ-45LAN (networking) and USB2 interface available
Tri Colour Beacon
Programmable with audible alarm
Documentation
Hard copy manuals comprising: Operator,Installation, Electrical Drawings. On board technical manuals and tutorials supporting operator functions. DVD containing manuals and tutorials.
