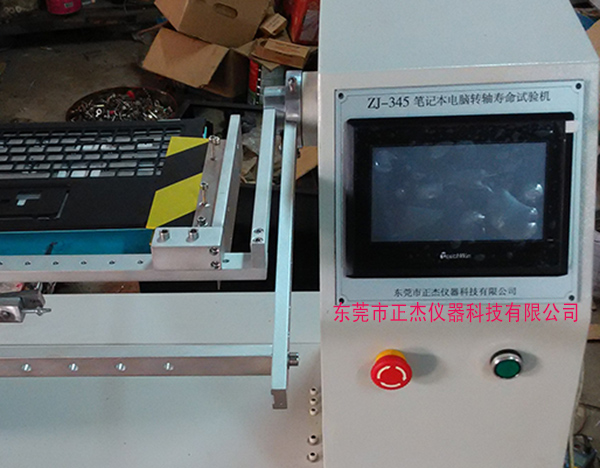

筆記本電腦360度翻蓋耐久壽命試驗機廠家

筆記本電腦360度翻蓋耐久壽命試驗機廠家

筆記本電腦翻蓋壽命試驗機適用于NOTE-BOOK手提電腦經過多次360度打開/關閉上蓋后，轉軸面損壞塑膠本體，測試其耐久疲勞壽命。采用觸摸屏設定界面，PLC為控制系統，精密電機帶動，測試方便，更符合測試要求；角度、速度、次數等參數可預置，人性化設計，更實用，更方面。

  1、測試產品范圍：0-20寸
  2、試驗角度：1-360度（觸摸屏可設）
  4、測試速度：2-20次/分（觸摸屏可設）
  5、試驗次數：0-99999999次（可預置，斷電記憶功能）
  6、控制系統：七英寸TFT真彩觸摸屏＋PLC＋精密電機
  7、固定夾具：可調式固定治具
 8、工作面高低可調：0-60 mm
 9、保護功能：急停功能、自動回原點功能

Notebook computer 360 degree turning durability life test machine manufacturer
Laptop flip life testing machine is suitable for NOTE-BOOK portable computer after 360 times to turn on / off the cover, the rotating shaft surface damage to the plastic body, to test its endurance fatigue life. The touch screen interface, PLC control system, the motor drives the precision, convenient testing, more in line with the testing requirements; angle, speed, frequency and other parameters can be preset, humanized design, more practical and more.
1, test product range: 0-20 inch
2, test angle: 1-360 degrees (touch screen can be set)
4, test speed: 2-20 / min (touch screen can be set)
5, test times: 0-99999999 times (can be preset, power failure memory function)
6, control system: seven inch TFT touch screen PLC precision motor
7, fixed fixture: adjustable fixture
8, height adjustable: 0-60 mm
9, protection function: emergency stop function, automatic back to the original function
