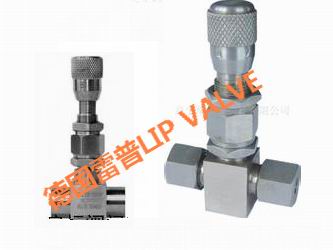

進口微量調節針型閥
mported fine adjustment needle valve
德國雷普LIP進口微量調節針型閥由深圳派克閥門有限公司總代理
German imports Repsol LIP fine adjustment needle valve Valve Co., Ltd. by the Shenzhen Parker distributor
LIP中國總代理、產品選型、詳細產品參數及售后服務電話:0755-81708778,傳真:0755-81713669,手機:13827443669,在線QQ:307161059 郵箱:13827443669@163.com,感謝您選用德國雷普LIP品牌高壓針
型閥,我們將為您提供更節能、優化的流體管道及設備的解決方案和產品服務.
LIP distributor in China, product selection, detailed product specifications and after-sales service Tel: 0755-81708778 Fax: 0755-81713669 Mobile: 13827443669 Online QQ: 307161059 E-mail: 13827443669@163.com, Thank you for choosing Germany Repsol LIP brand high pressure needleValves, we will provide you with more energy-efficient, optimized fluid piping and equipment solutions and products and services.
進口微量調節針型閥應用范圍:
水、油品、蒸汽、天然氣,石油化工,海洋石油平臺,化工化學,電力工業氣及某些腐蝕性液體等介質。
Imported fine adjustment needle valve range of applications:
Water, oil, steam, gas, petrochemical, offshore oil platforms, chemical chemical, electric power industrial gas and some corrosive liquids and other media.
產品簡介Product Descrtption::
德國LIP閥門產進口微量調節針型閥產品結構形式為外螺紋連接,所以也叫外螺紋針型調節閥。
進口微量調節針型閥品種之多,型號有A21W,A24W等。針型閥具有安裝拆卸方便、連接緊固、有利于防火、防爆和耐壓能力高、密封性能良好等特點,廣泛使用于化工、電力、液壓機械、石油天然氣等行業。進口微量調節針型閥相比其他閥門更加的耐壓調節性能好,所以一般用于較小流量,較高壓力的氣體或者液體介質的調節.針型閥與壓力表配合使用是合適的了.一般的針型閥形都做成螺紋連接及卡套連接形式。
Germany LIP production valve needle valve imported fine adjustment of product structure in the form of an external thread connection, it is also called the external thread the needle valve.
Imported fine adjustment needle valve varieties, models A21W, A24W like. Needle valve with easy installation and removal, connections are tight, there is conducive to fire, explosion-proof and high voltage capability, good sealing performance characteristics, widely used in chemical, electrical, hydraulic machinery, oil and gas and other industries. Imported fine adjustment needle valve more than any other valve pressure regulation performance, it is generally used to regulate small flow, high pressure gas or liquid medium. Needle valve and pressure gauge is used in conjunction with a suitable. the general shape of the needle valve threaded connections are made and the ferrule connection type.
產品特性:進口微量調節針型閥連接形式為外螺紋對焊接管式,結構特征是錐面密封,活動閥瓣;公稱壓力≤10000Psi,適用工作溫度-200℃~+850℃;
Product Features: Imported fine adjustment needle valve connected in the form of an external thread welded tubular structure is characterized by cone seal, valve event; Nominal ≤10000Psi, suitable for working temperature -200 ℃ ~ + 850 ℃;
進口微量調節針型閥技術參數:
Imported fine adjustment needle valve technical parameters:
公稱壓力:16-160MPa
公稱通徑:DN1~DN125;
適用介質:油﹑水﹑氣等多種非腐蝕性或腐蝕性介質;
適用范圍:核電站,高壓泵,船舶廠,太空高壓實驗平臺;
適用溫度:-20℃~+440℃ -70℃~240℃ ≤540℃ ≤570℃等;
制造材料:20#﹑1Cr18Ni9Ti﹑不銹鋼304﹑316﹑316L﹑12Cr1Mov等
Nominal pressure: 16-160MPa
Nominal Diameter: DN1 ~ DN125;
Applicable medium: oil, water and other non-corrosive gas ﹑ or corrosive media;
Scope: nuclear power plants, high-pressure pump, factory ships, space, high-pressure experimental platform;
Temperature: -20 ℃ ~ + 440 ℃ -70 ℃ ~ 240 ℃ ≤540 ℃ ≤570 ℃, etc;
Manufacturing Material: 20 # steel 304﹑316﹑316L ﹑ ﹑ ﹑ 1Cr18Ni9Ti 12Cr1Mov
進口高壓針型閥安裝注意事頂: 閥門安裝前必須進行外觀檢查,閥門的銘牌應符合現行國家標準《通用閥門標志》GB 12220的規定。對于工作壓力大于1.0 MPa 及在主干管上起到調節作用的閥門,安裝前應進行強度和嚴密性能試驗,合格后方準使用。強度試驗時,試驗壓力為公稱壓力的1.5倍,持續時間不少于5min,閥門殼體、填料應無滲漏為合格。嚴密性試驗時,試驗壓力為公稱壓力的1.1倍;試驗持續的時間符合GB50243的要求。
Imported high-pressure needle valve installation precautions top: must be visually inspected prior to valve installation, the valve plate should be consistent with existing national standards, "Universal Valve logo" GB 12220 of the regulations. For working pressure greater than 1.0 MPa and play a regulatory role in the main pipe valve, the installation should be the strength and rigorous performance tests, passing behind the prospective use. Strength test, the test pressure is 1.5 times the nominal pressure, duration of not less than 5min, the valve housing, packing should be no leakage in compliance. Tightness test, the test pressure for the nominal pressure of 1.1 times; the test duration in line with GB50243 requirements.
產地:德國
Origin: Germany
產品品牌:德國雷普(LIP)
Brand: Germany Repsol (LIP)
