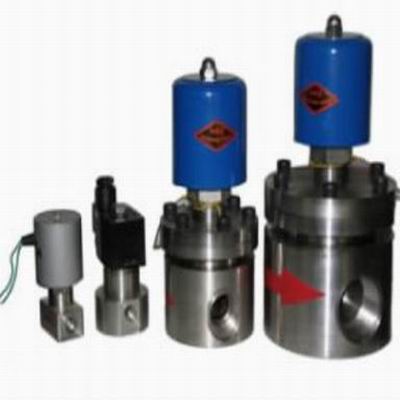

LIPDGARF高壓電磁閥
LIPDGARF pressure solenoid valve
   LIPDGARF高壓電磁閥作為自動控制及遠程控制的一個執行器，它廣泛應用在冶金、石化、輕紡、制藥、食品、煙草、國防、科研等各

項領域，其流通的介質分別為蒸汽、空氣、油、水、燃氣、制冷劑等。
   LIPDGARF pressure solenoid valve as an automatic control and a remote control actuator, it is widely used in the

field of metallurgy, petrochemical, textile, pharmaceutical, food, tobacco, defense, scientific research, its

circulation media are steam, air, oil, water, gas, refrigerants.
工作原理working principle：
   當線圈通電，動鐵芯吸合，先導閥口處于開啟狀態，使主閥塞上腔降壓，主閥塞因壓差開啟，介質流通。當線圈斷電，動鐵芯復位，

先導閥口處于關閉狀態，使主閥塞上腔升壓，將主閥塞壓下，電磁閥關閉.
   When the coil is energized, the movable core pull, the pilot valve port is turned on, the main valve plug chamber

pressure, because the pressure to open the main valve plug, medium flow. When the coil power, moving core reset, the

pilot valve port is closed, the main valve plug chamber booster, the main valve plug depressed, the solenoid valve is

closed.
技術參數Technical Parameters：
閥體材質：不銹鋼304     壓力等級：0-32.0mpa
使用溫度：≤650°C     電源電壓：AC220V   DC24V
結構型式：先導式       控制方式：常開、常閉
連接方式：NPT螺紋 、G螺紋    介質：水、油
Body material: stainless steel 304    Pressure rating: 0-32.0mpa
Temperature: ≤650°C    Power supply voltage: AC220V DC24V
Structure type: Pilot      Control: normally open, normally closed
Connection: NPT thread, G thread    medium: water, oil

安裝維護Installation and maintenance：
1、現場安裝必須按照國家防爆危險場所“電氣安全規程”中有關規定進行。
2、電磁閥內外接地，必須牢固可靠。
3、電磁閥引出電纜導線為三根，其中一根為接地線，另二根為工作導線。
4、電磁閥安裝前應將管路內部清洗干凈。
5、電磁閥有雜質時，進口端前必須安裝密度0.5mm的過濾器。
6、安裝電磁閥時注意閥體上箭頭要求與介質流向一致。
7、電磁閥應垂直安裝，線圈在上。
8、電磁閥維修時應斷電后開蓋，非電器人員不得拆卸電磁閥電氣部件。
1, on-site installation must be carried out in accordance with the national explosion-proof hazardous location

"Electrical safety regulations" the relevant provisions.
2, the solenoid valve inside and outside the ground, must be solid and reliable.
3, the solenoid valve lead cable conductors for the three, which one is the ground wire, and the other two wires to

work.
4, the solenoid valve is mounted inside the front line should be cleaned.
5, when the solenoid valve with impurities, must be installed before the inlet end of 0.5mm density filter.
6, pay attention to the arrow on the valve body in line with the medium flow requirements to install the solenoid

valve.
7, the solenoid valve should be mounted vertically on the coil.
8, when the solenoid valve repair after opening the lid off, non-electrical personnel may not disassemble solenoid

valve electrical components.
